sales@fushijixie.cnPolyethylene foam sheet, which is also named as pearl cotton. It is a kind of new-type packing material with the features of damp proof, shock proof, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials and used widely in the packing of electronic product, daily necessities, glass, pottery, electrical household appliances, furniture, hardware product, toy, etc.

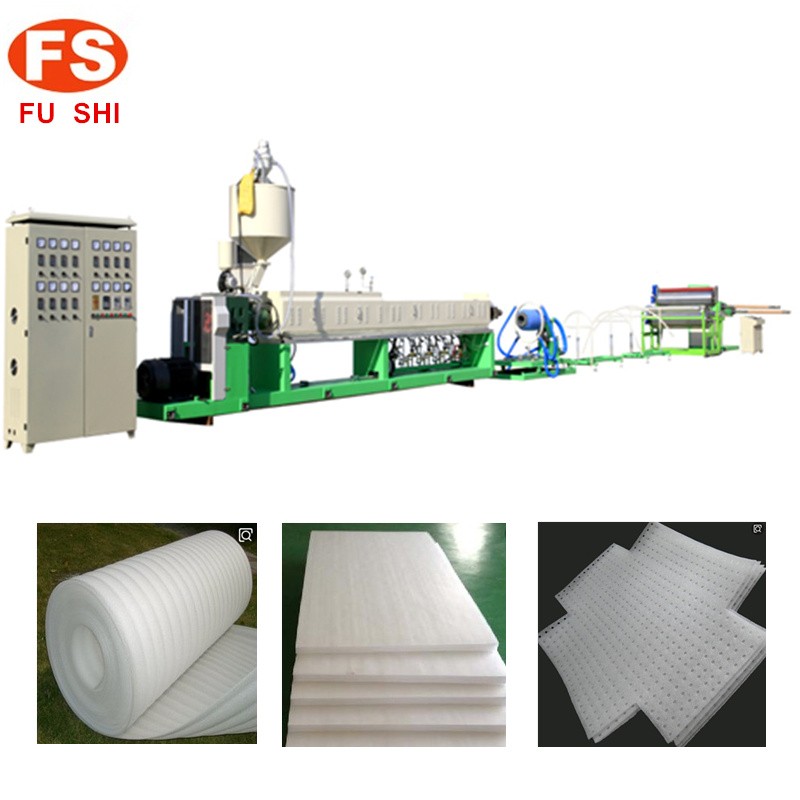

SPECIFICATIONS FOR EPE FOAM SHEET EXTRUSION MACHINE
|
||
MODEL
|
|
FS-FPM180
|
APPLICABLE MATERIAL
|
|
LDPE
|
WIDTH OF PRODUCT
|
MM
|
1100x2000
|
THICKNESS OF PRODUCT
|
MM
|
3.0-16.0
|
INSTALLED POWER
|
KW
|
170
|
DIMENSION(LxWxH)
|
MM
|
32000x2500x2300
|
TOTAL WEIGHT
|
TON
|
bout17
|

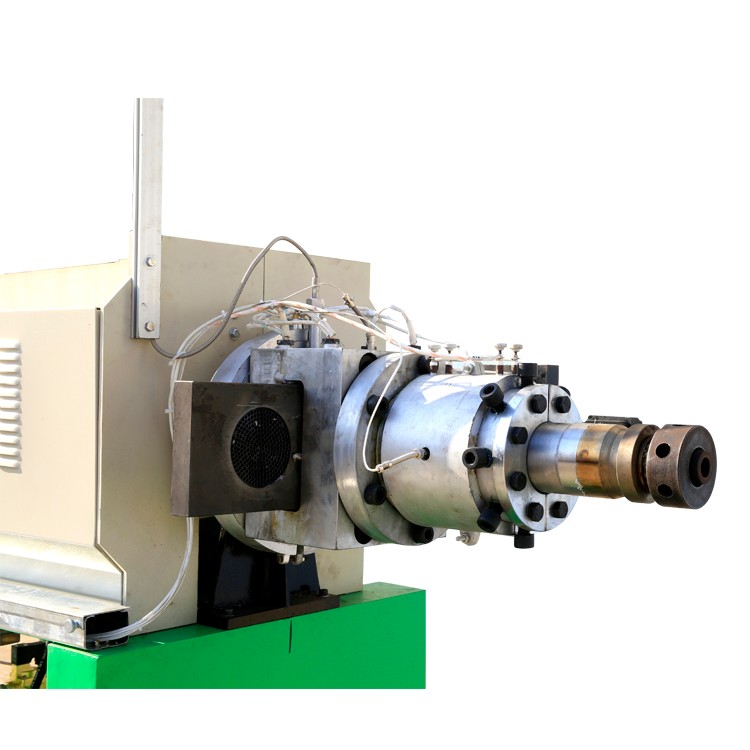

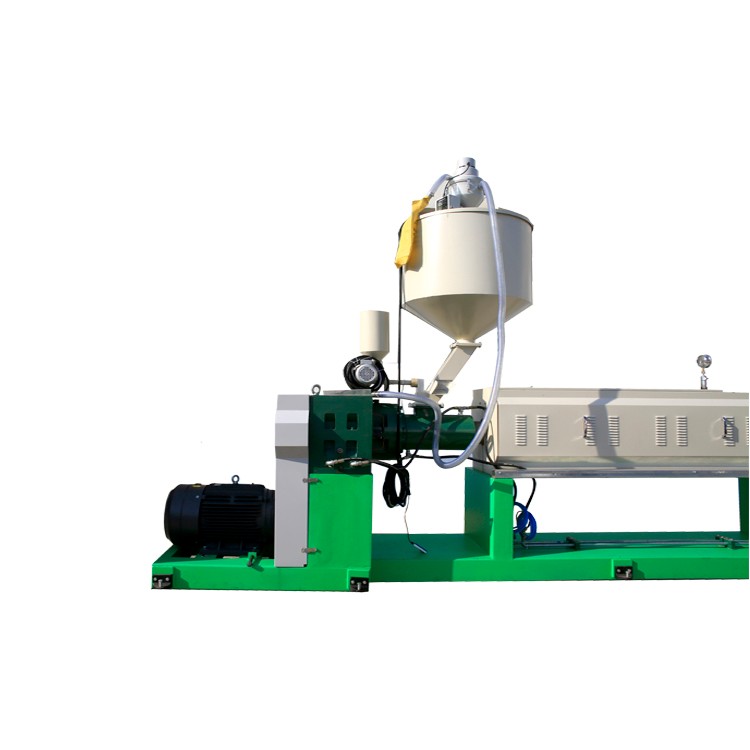

Screw Extruder Portion
|
|
Screw Bolt and Barrel Material
|
38CrMoAlA nitrogen treatment
|
Main Motor Style
|
Three-phase asynchronous motor with frequency converter
|
Driving Motor Power
|
45KW
|
Diameter of Screw Bolt
|
Φ105MM
|
L/D Ratio of Screw
|
55:1
|
Max Yield Per Hour
|
120KG/H
|

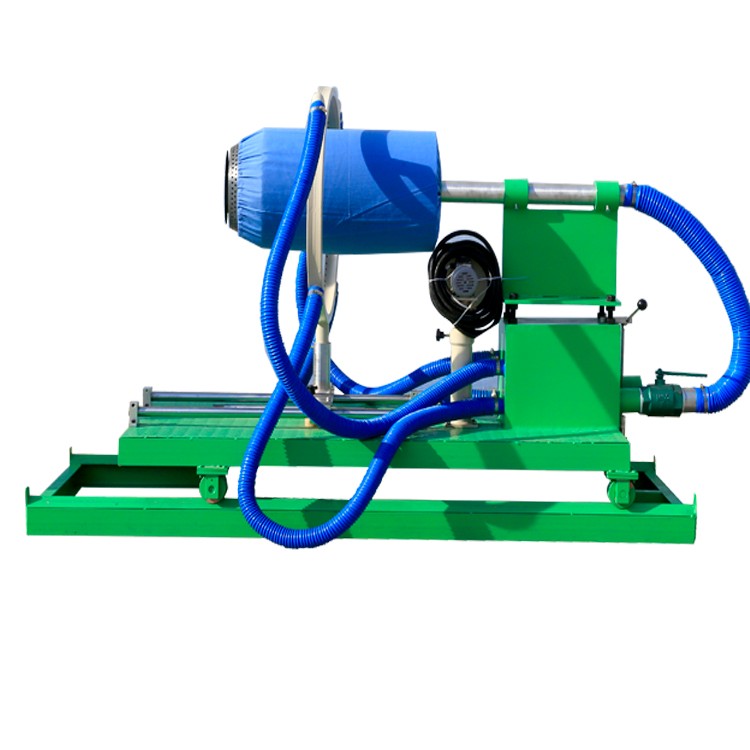

Air Ring and Mold Drum
|
|
Material
|
Steel
|
Cooling Method
|
Wind and Water
|
Blower Motor Power
|
0.55KW
|
Diameter of Air Ring
|
φ700
|

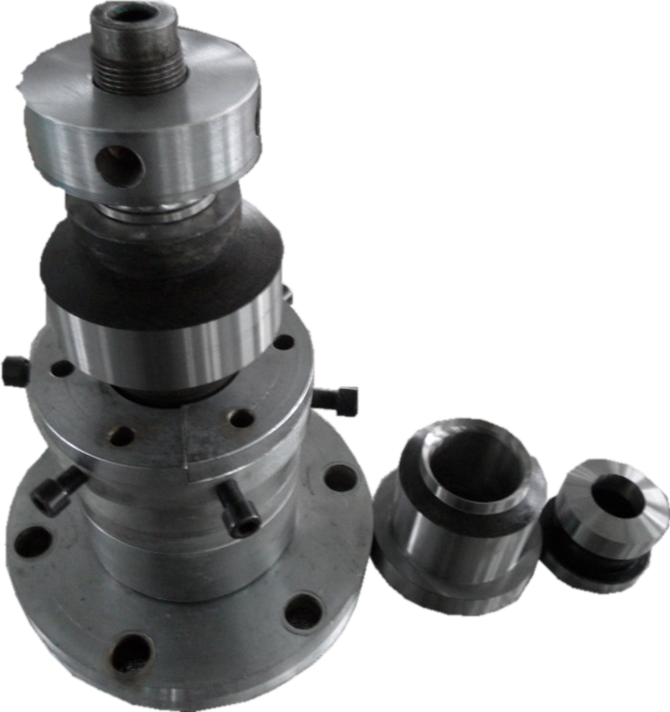

Size of Mold Drum
|
According to Customer Requirements
|

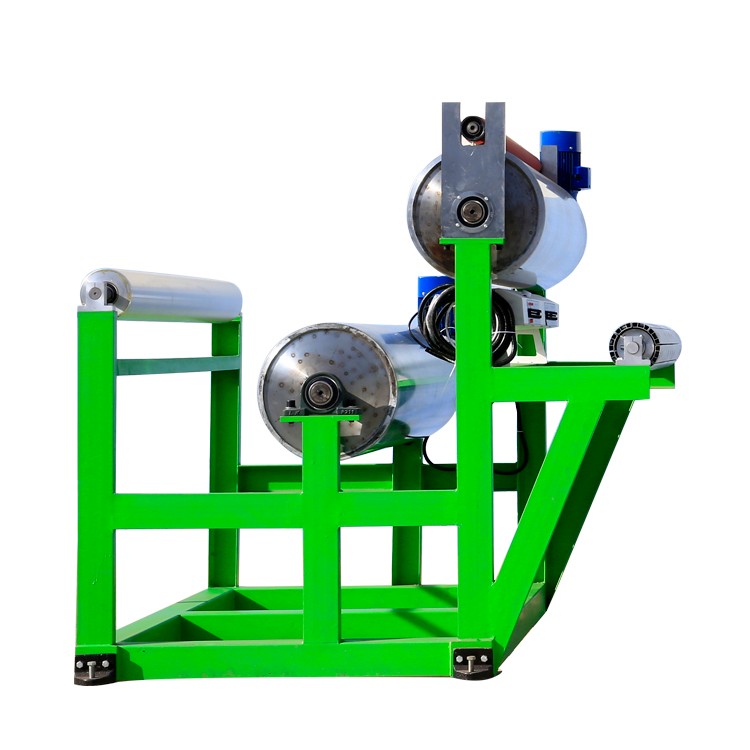

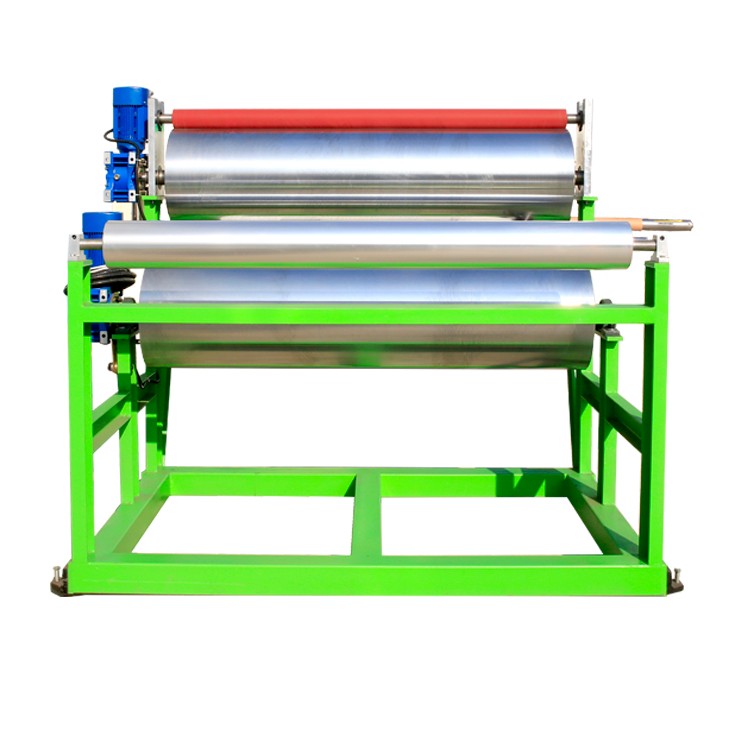

Haul Off Machine and Expansion Frame and Winding Unit
|
|
Size of Mirror Roller
|
φ400×1800 2pcs
|
Size of Expand Roller
|
φ150×1800 1pc
|
Expand Roller Material
|
Rubber and Aluminum
|

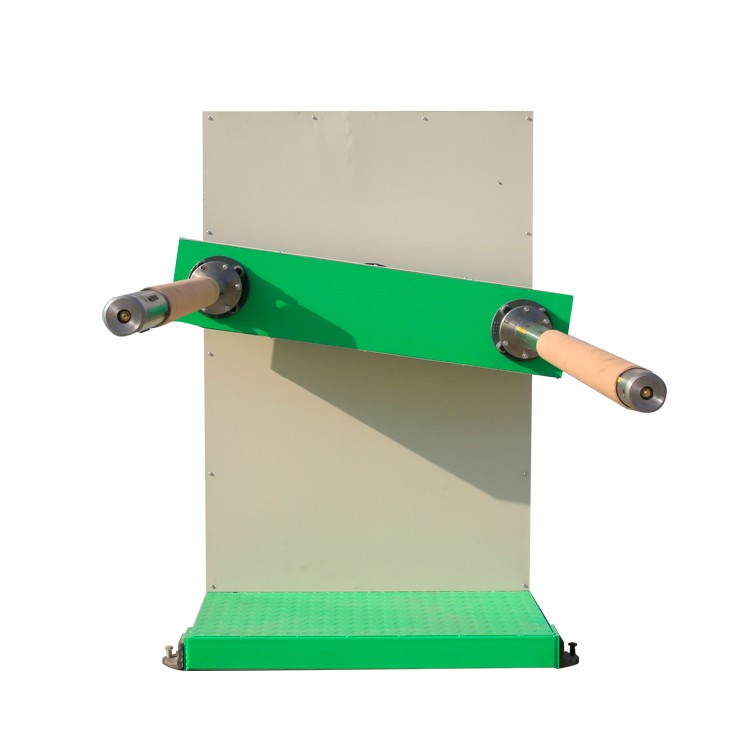

Winding Type
|
Dual Spindle Cantilever Translocation Type
|
Coiling Weight
|
Maximum 40KG
|
Coiling Diameter
|
Maximum 1600MM
|
Length Control
|
Meter Counter Control, Adjust Length
|
