PE Foam Net Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

PRODUCT DESCRIPTION

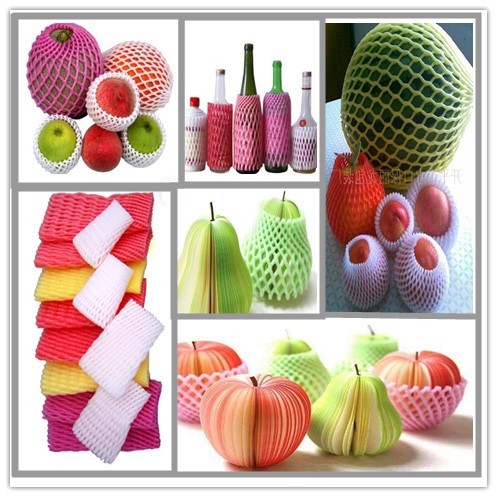

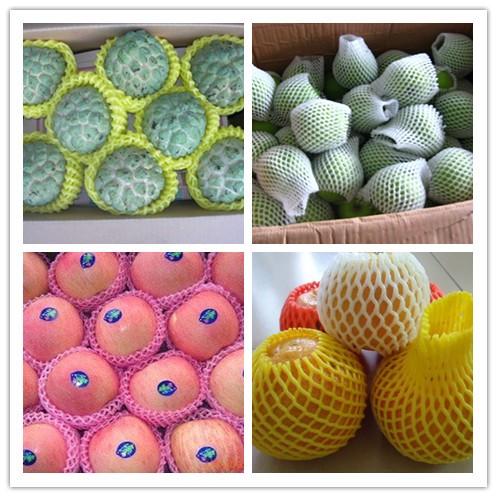

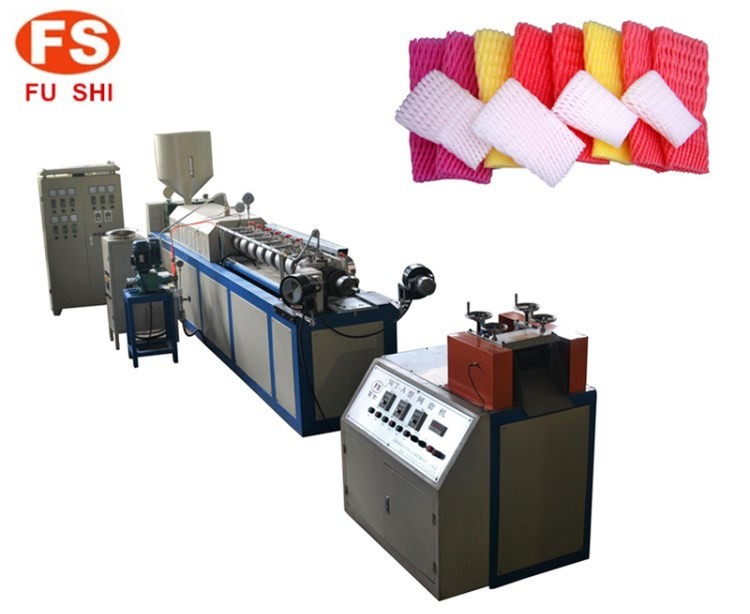

This EPE foam fruit net extrusion machine can produce EPE foam net, which is a new soft packing material. Due to its unique expanding reticulation structure and the elastic foamed net film, it is widely used in the package of glass product, precision instrument, various fruits, etc.

SPECIFICATIONS FOR EPE FOAM NET EXTRUDER MACHINE
TYPE	FS-FPW70	FS-FPW75
EXTRUDER	70/55	75/55
FOAMING RATE	20-40	20-40
SPEC. OF PRODUCT	10-40 MESH	10-40 MESH
OUTPUT	10-35KG/H	15-40KG/H
COOLING METHOD	COOLED BY AIR AND WATER
INSTALLED CAPACITY	25KW	28KW
DIMENSION (L×W×H)	11000×3000×1700MM	12000×3000×1800

Detailed Images

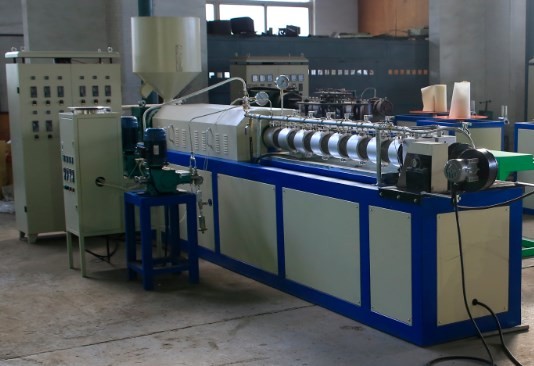

Extruder
Screw diameter	φ75mm
Screw L/D	55:1
Output	15-40kg/H
Die dead and Mold	High-speed rotating die, power: 3kw, frequency control timing
Net type	Shrinkable (Programmable control)
Mold	customized

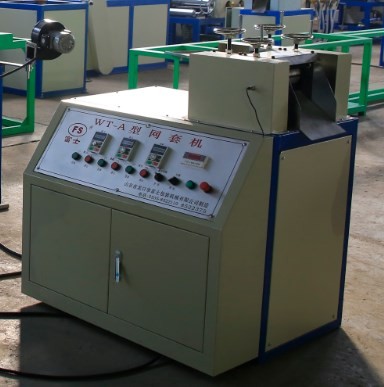

Cutter

Power 0.75KW

Frequency control timing
